Specs


ENGINE

Manufacturer / Model

Kawasaki FS481V OHV



Power (97/68 CE)

14.5 HP / 10.8 kW @ 3600 rpm



Cylinders / Displacement / Torque

Twin Cylinder / 603 cm³ / 42 Nm @ 1800



Tank capacity

2.6 gal.



REMOTE CONTROL

Control tech

Optical contactless



Remote transmission

“AFA” (Automatic Frequency Agility)

Range

650 feet




Water protection

IP 65



TRANSMISSION

Type

Variable - electric



48 Volt DC (ELV - Safe Low Voltage)



Speed

Variable 0-5 mph



PTO

Clutch

Electro-Magnetic



PTO speed

2500 rpm



MOWING DECK

Transmission

Belt driven by Electro Magnetic clutch



Cutting width

31.5 inches



Cutting height

1.2 - 5.9 inches;
Electric adjustment from remote control



PERFORMANCE

Productivity

Max. 0.8 acre/hr (@ 2.5 mph)



Compacting pressure

0.7 lb / in²

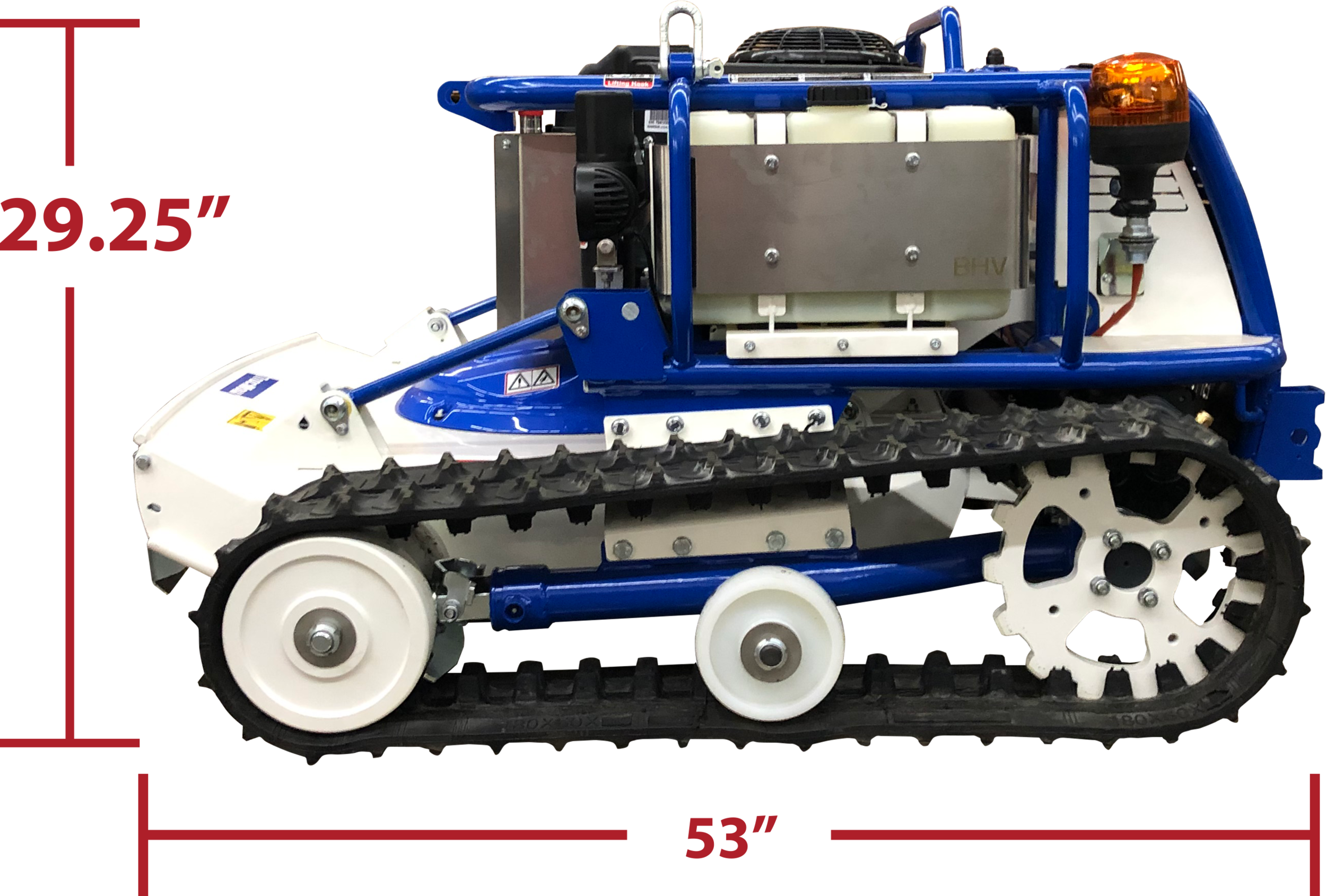

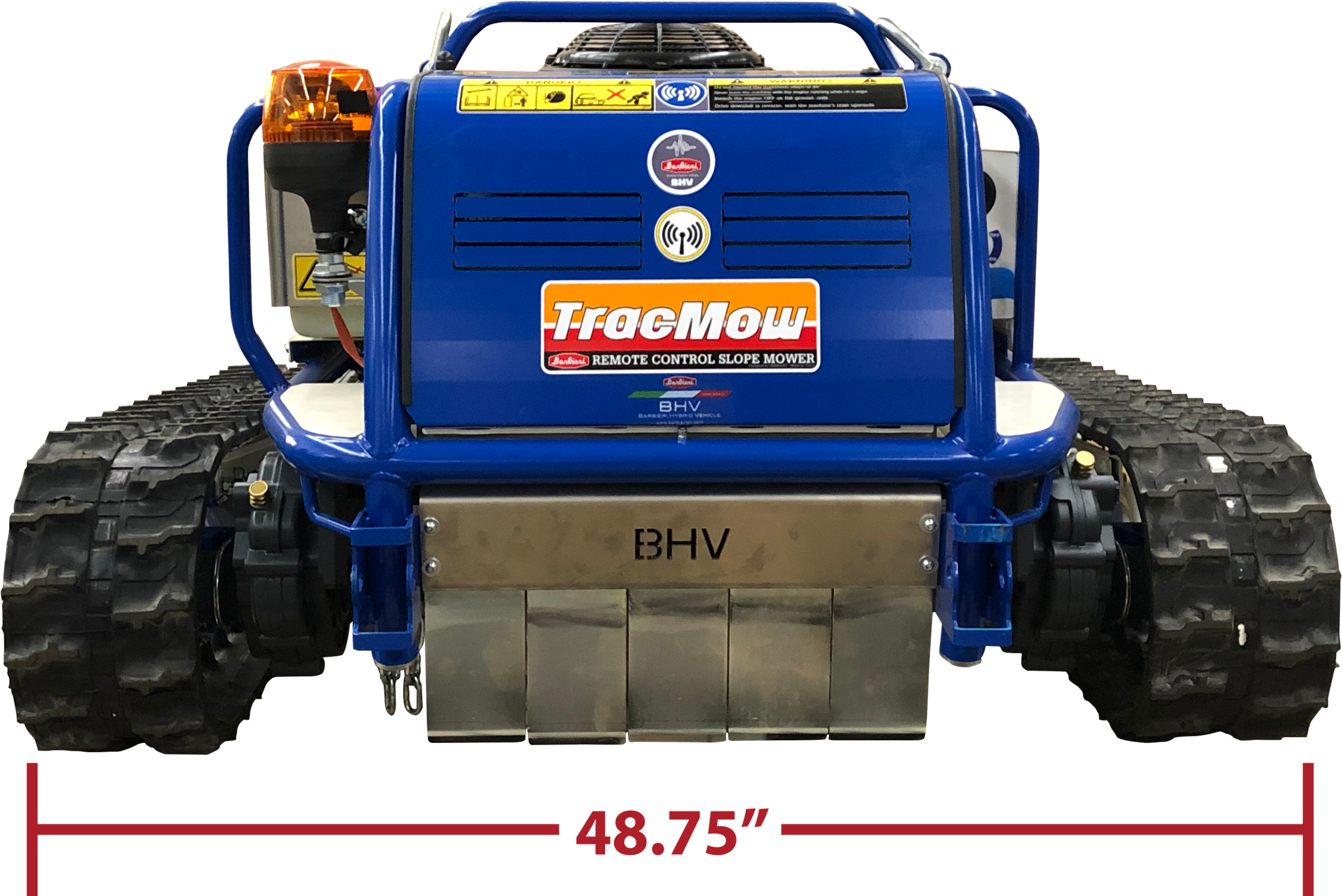

Dimensions (L x W x H)

53 x 48.75 x 29.25 inches



Weight

705 lbs



Water protection

IP 65
